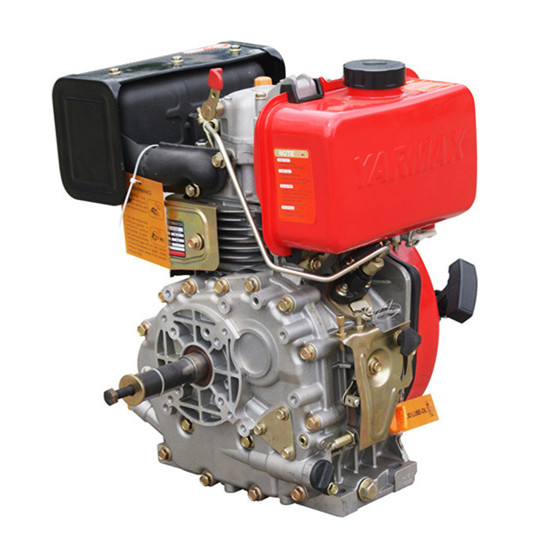

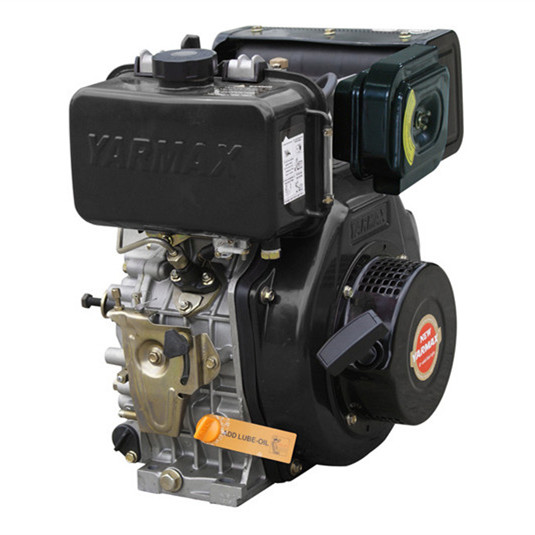

- Model:170F, 173F, 178F, 186F, 186FA, 188F, 190F, 192F, 192FA
- Product introduction:
- * The Miniaturized Fuel Injection System;
* Low Fuel Consumption;
* Light Weight & Compact Design;
* Easy & Quick Start;
* Stand Up The Hard Work;
* Recoil Or Electric Start;
- E-mail: manager@yarmax.com
- Features
- Specifications
- Download
Unique Drive System
The drive gear design is incorporated into the latest YARMAX diesel engine which will greatly reduce vibration and noise.
Fuel System Technology
Fuel systems assure high efficiency operation. The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions. The engine meets current and proposed EPA emission standards.
Advanced Noise-reduce Design
The high efficiency muffler system greatly lowers exhaust noise. With the addition of the advanced design air induction system,intake noise is reduced to a low level. The design of the cylinder block, engine cover,and valve drain all combine to reduce engine noise levels.
Model |
| YM170F | YM173F | YM178F | YM186F | YM186FA | YM188F | YM190F | YM192F |
Type |
| Single-cylinder、vertical、air-cooled、4-stroke、direct injection |
BorexStroke | mm | 70×55 | 73×59 | 78×62 | 86×70 | 86×72 | 88×74 | 90×74 | 92×75 |
Displacement | L | 0.211 | 0.247 | 0.296 | 0.406 | 0.418 | 0.456 | 0.477 | 0.498 |
Compression Ratio |
| 20 | 0:00 | 0:00 | 19 | 19 | 19 | 19 | 19 |
Rated Power | KW/rpm | 2.5/3000 2.8/3600 | 3.5/3000 3.8/3600 | 3.68/3000 4/3600 | 5.5/3000 6.0/3600 | 5.7/3000 6.3/3600 | 7.3/3000 7.5/3600 | 7.5/3000 7.7/3600 | 8.0/3000 8.2/3600 |
Rated Power | HP/rpm | 3.4/3000 3.8/3600 | 4.8/3000 5.2/3600 | 5.0/3000 5.4/3600 | 7.5/3000 8.2/3600 | 7.8/3000 8.6/3600 | 10.0/3000 10.2/3600 | 10.2/3000 10.5/3600 | 10.9/3000 11.2/3600 |
Rated Speed | rpm | 3000 3600 |
Lowest rotation speed at zero load | r/min | ≤1300 |
Lubricating system |
| Pressure splashed |
Starting system |
| Recoil Start |
Rotation direction(face to the output axle) |
| Anticlockwise |
Fuel type |
| 0#、-10#、-20# diesel |
Fuel tank capacity | L | 2.5 | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Fuel consumption/related rotation speed (g/kW.h/r/min) |
| 280.2/3000 288.3/3600 | 276.1/3000 285.6/3600 | 275.1/3000 281.5/3600 |
Lube oil type |
| CD grade or SAE 10W-30, 15W-40 |
Lube oil capacity | L | 0.75 | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
Starting motor capacity | V、kW | 12V 0.8kW |
Charging generator capacity | V、A | 12V 3A |
Battery capacity | V、Ah | 12V24Ah-36Ah |
Overall dimension(L×W×H) | mm | 335X380X415 | 335X380X415 | 385X420X450 | 420X440X495 |
Dry weight | kg | ≤27(Recoil starter) ≤32(Electric starter) |
